RPS 1HP 55RPS10, Up to 50ft Head, 38 to 62GPM, Submersible Pump End + 1HP 220V Motor + Starter Box
BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST
5RPS series pumps are designed for low flow applications of 62 GPM or under. They can be self-installed or placed using a local installer. At 25 feet of head the 55RPS10 will pump 62 GPM!
This RPS pump uses a hearty 3 Wire Single Phase 1HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.
Outlet Size: 2"
✅ NSF Drinking Water and UL Compliant

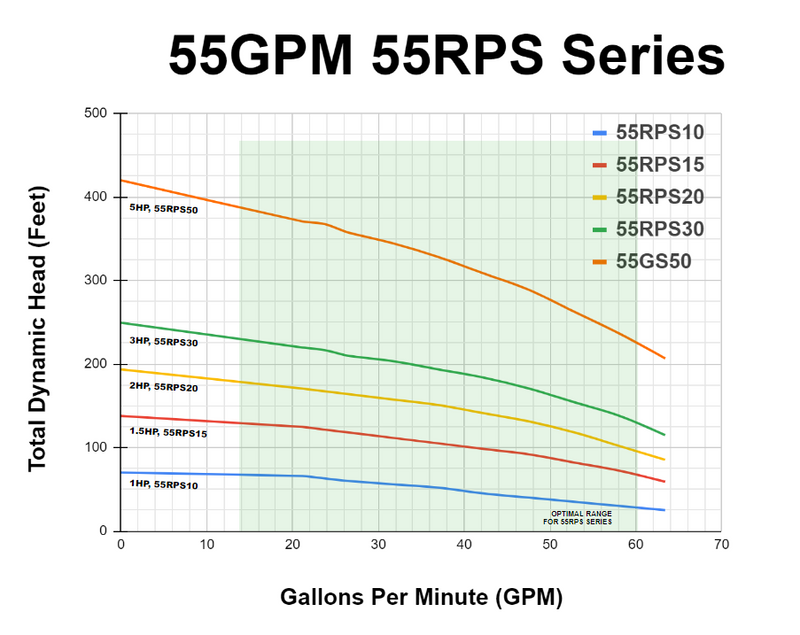

| Total Head | Gallons Per Minute (GPM) |
| No head | 62 |
| 25 feet | 62 |
| 50 feet | 38 |
| Above 50 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 55RPS Submersible Pumps!
Specs
- 304 Stainless Steel Construction
- Centrifugal Pump End

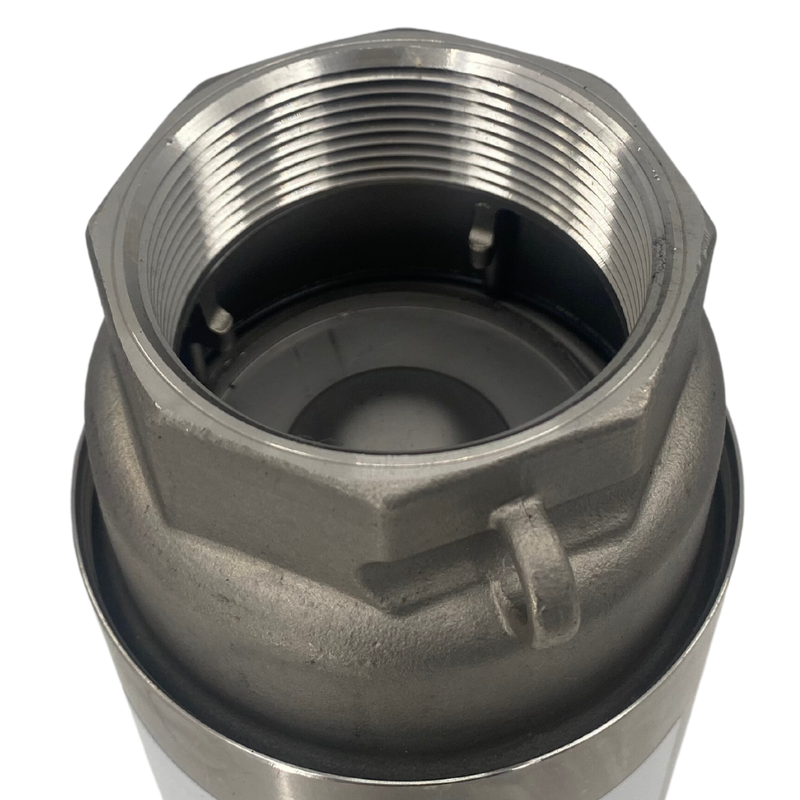

- 2" FNPT outlet
- Length 28.78
- Weight 34.7
- Stages 3
- 3.85" Diameter, made to fit in well casing 4 inches wide and larger
- RPS Water Pumps Spec Sheet + Pump Curves

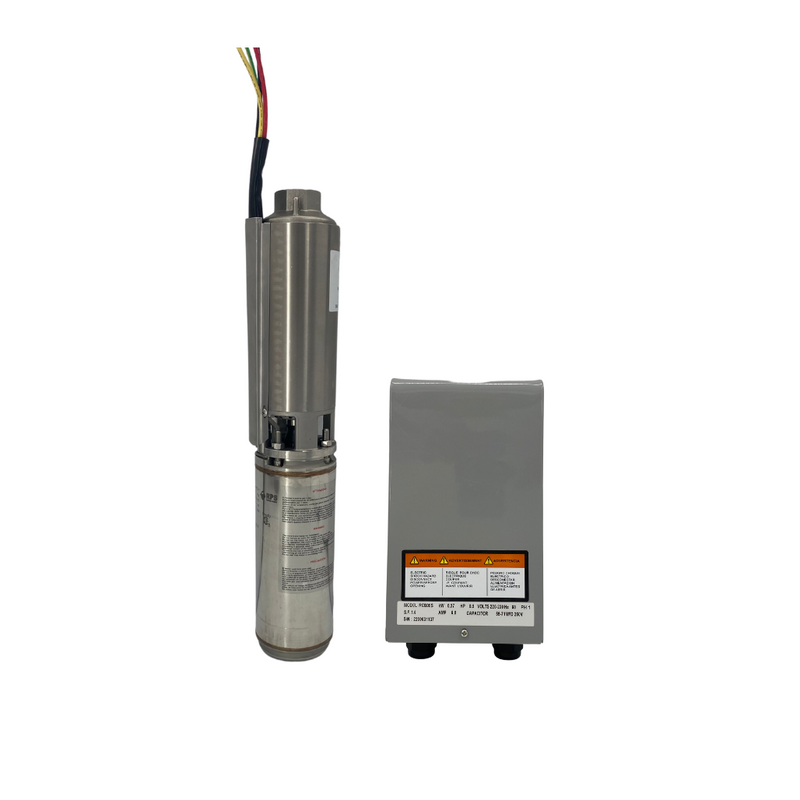

What's Included
- Stainless Steel Pump End
- Stainless Steel Motor End (w/ 6ft of wire pigtail)
- Pump-Safe Starter Box

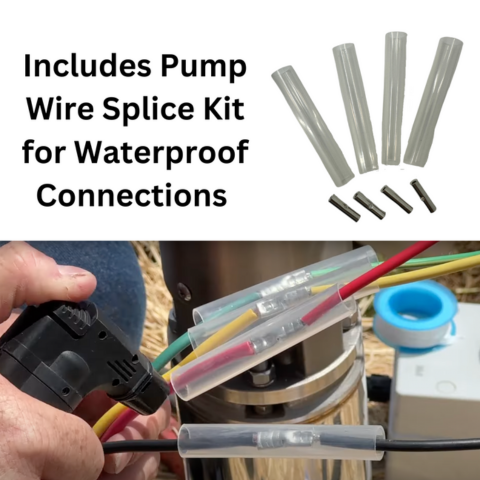

- Splice Kit for Pump Cable
- RPS Water Pumps Manual
