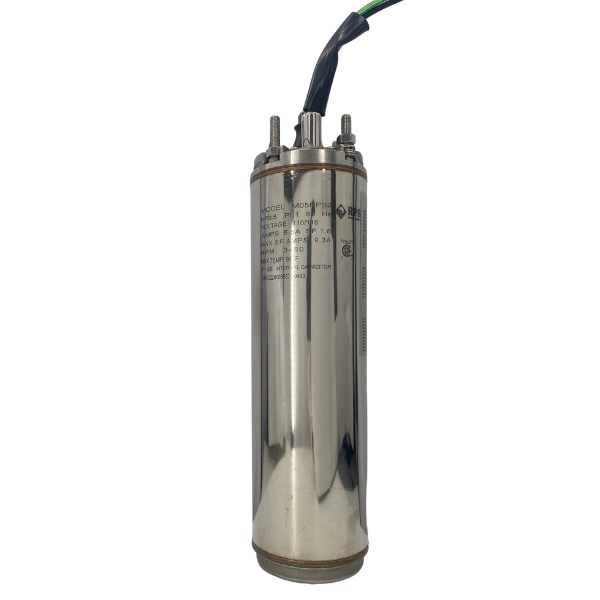

1/2 HP / 110V Single Phase / 2 Wire / 3.85" Pump Motor
BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST

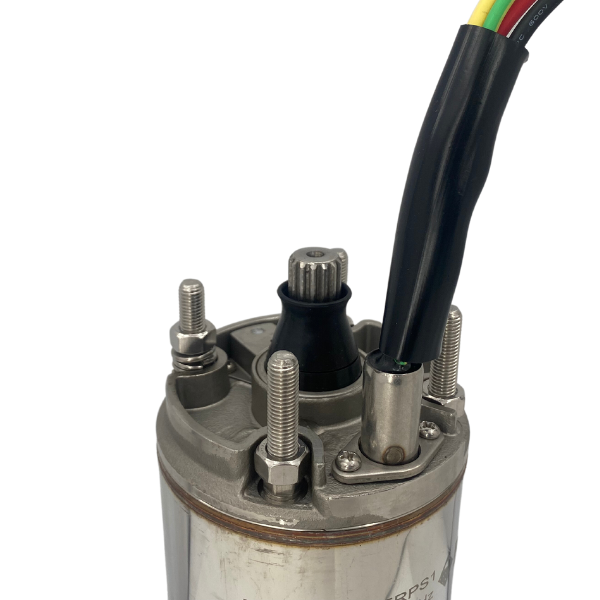

Stainless Steel 110V 1/2 HP motor end, 2 Wire Motor (2 Conductor + Ground).

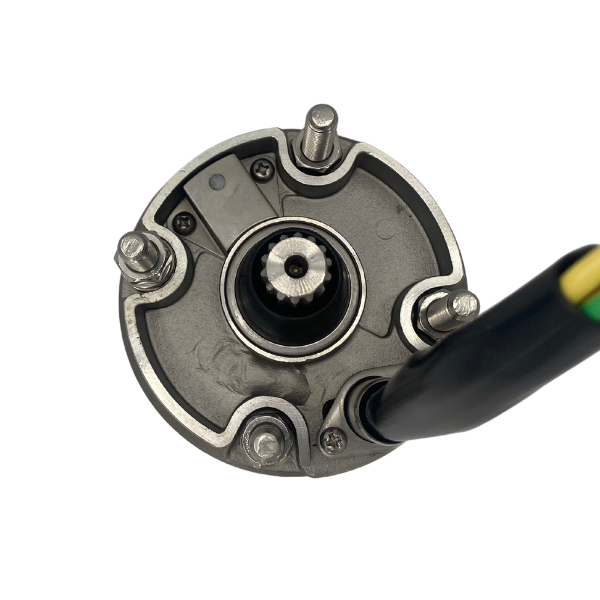

Also compatible with pump ends from other brands such as Goulds, Grundfos, Franklin Electric and AY MacDonald. Motor spline is manufactured to identical industry standard size, meaning motor is interchangeable with 4" motor ends from other brands, and is compatible with other 4" brand pump ends.
Compatible RPS Pump Ends Include: 05RPS05, 07RPS05, 10RPS05, 25RP05
Our 110V motor option does NOT require an external starter box, as the relay electronics are built into the motor itself.
✅ NSF Drinking Water and UL Compliant
NOTE: This is a motor end ONLY, you will need to already have a pump end or instead purchase one of our RPS motor + pump end kits.
Specs
- Hermetically sealed stator
- Pressure equalizing diaphragm
- Removable wire connector
- Laser welded stainless housing
- 304 Stainless Steel Construction
- Approx 6" pigtail of pump cable
- Length
- Weight
- 3.86" Diameter, made to fit in well casing 4 inches wide and larger
- RPS Water Pumps Spec Sheet + Pump Curves
- RPS Water Pumps Submersible Pump Manual
