Everything But the Pipe Easy Well Pump Install Kit - Pitless Adapter Version - One and Done
NOTE: You must choose a pump separately that fits your specific project, this kit DOES NOT include a pump
BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST

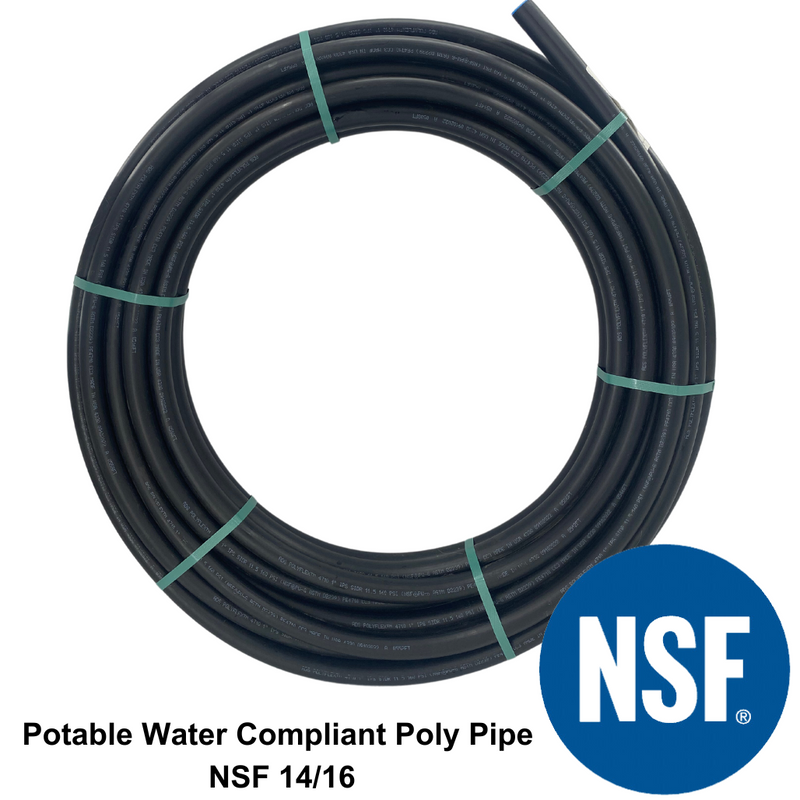

Already got the pipe? RPS has got you covered on the other items to successfully install your submersible pump! Our "Everything but the Pipe One-and-Done" is just like our regular One-and-Done, except that it doesn't include piping. If you plan on using your own PVC, steel, lay flat , or locally sourced poly pipe - this is for you!
In a remote area without access to a hardware store? Get everything you need to install an RPS Water Pump right to your doorstep, thats why we call it the One-and-Done, one click and you're done shopping!
Step 1) Choose between 100, 200, 300, 400 and 500 foot lengths for your wire and rope.
Step 2) Then choose a Pitless Adapter Assembly size. Measure your well casing diameter to determine which size Well Seal to select (How-To Guide). You'll also be selecting the type of adapter plumbing you require if you're using poly pipe. If your poly pipe is 1", choose the 1" adapter plumbing. If your poly pipe is 1.25", choose the 1.25" adapter plumbing.
We recommend that you use 1" pipe for any GPM rate is roughly between 5-15GPM. If you're purchasing a pump flow rate higher than 15 GPM, you'll typically need at least 1.25" pipe. Unsure which pipe to use? Call one of our technicians on staff and they can do a frictional loss calculation for your based on flow rate and length of pipe 855-560-5670.

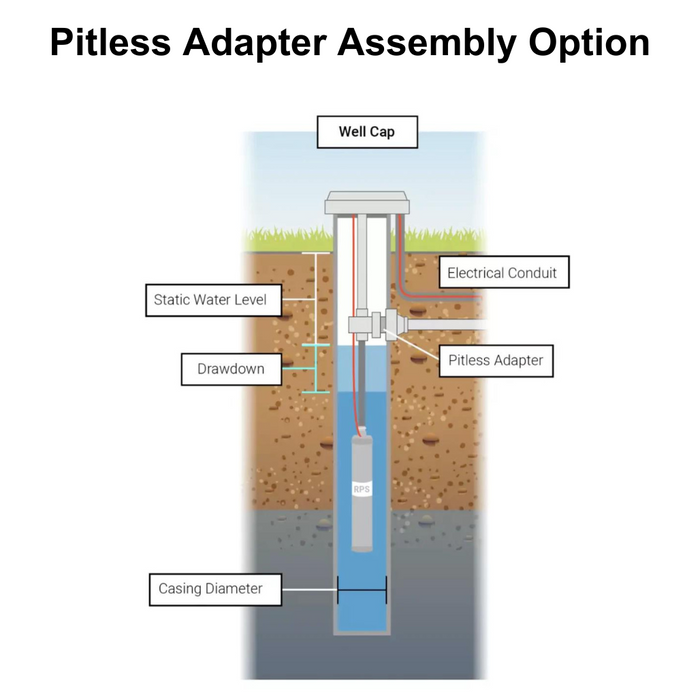

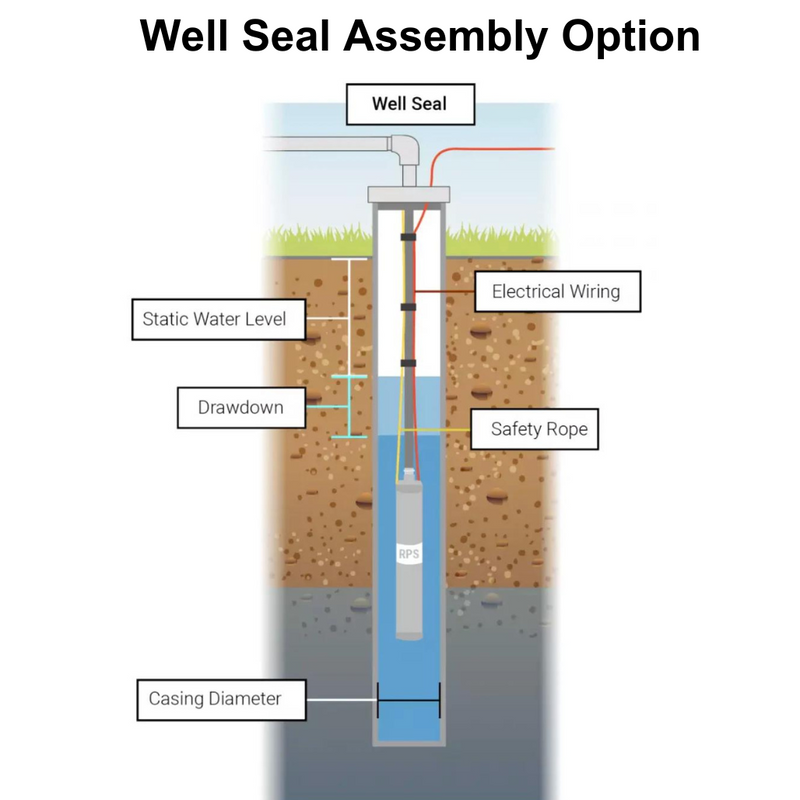

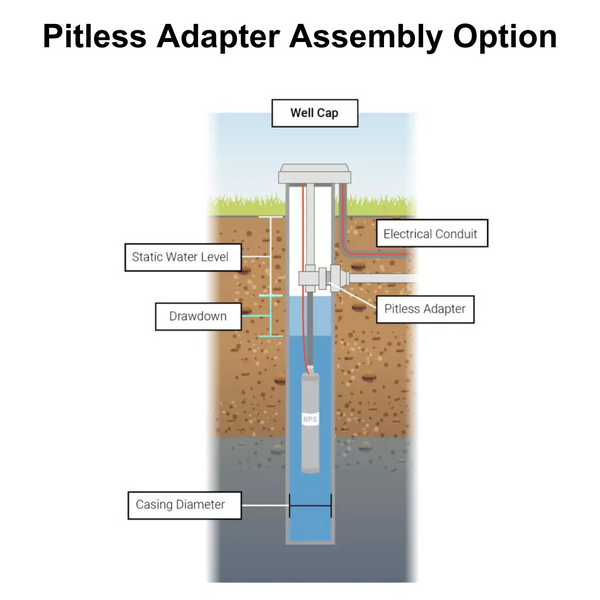

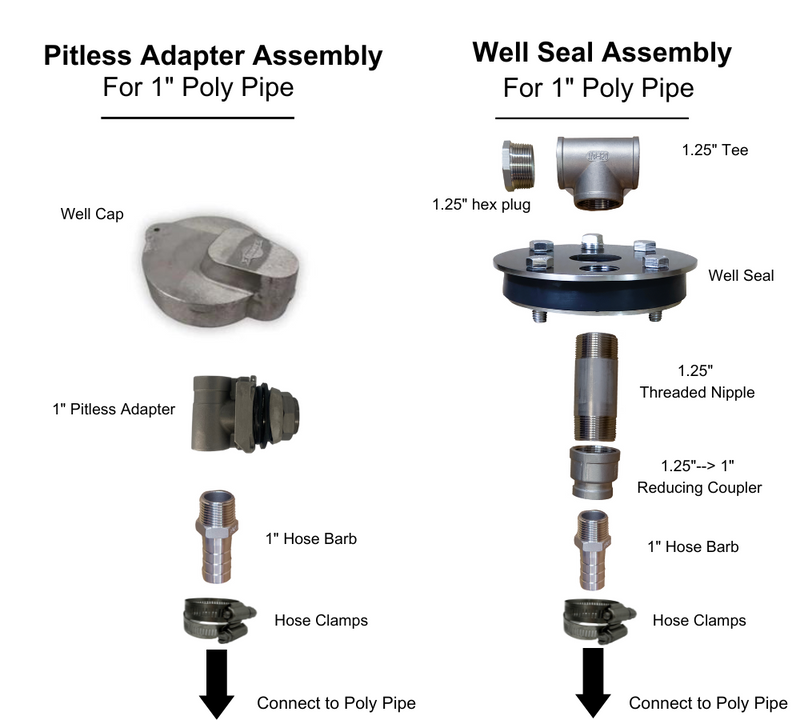

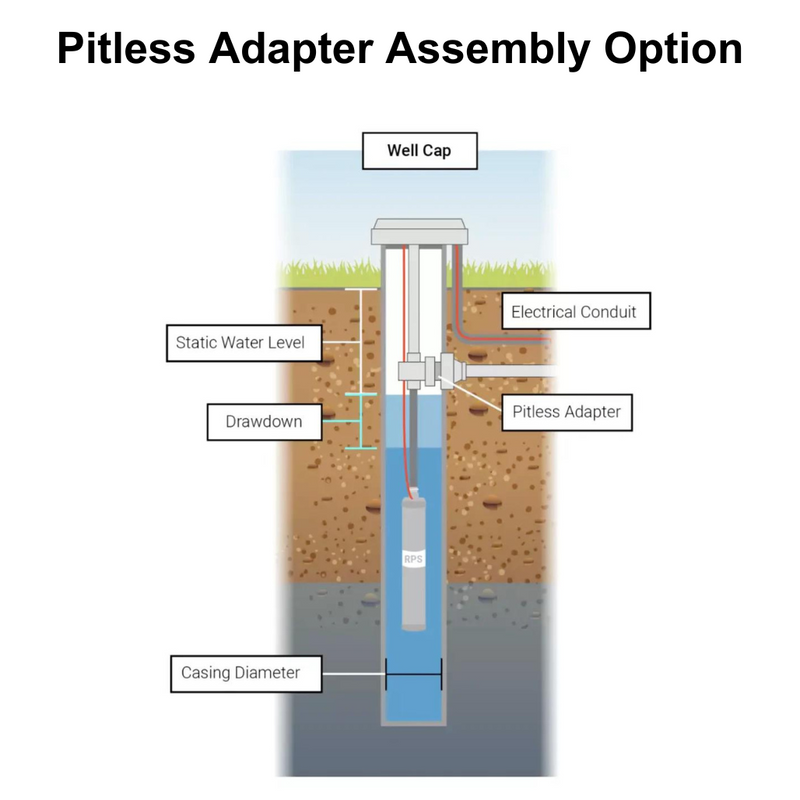

If you need a Well Seal Assembly, we have a separate listing that you can buy from here. See the pictures for differences between the two options, the easy way to tell the difference is "well seals route pipe through the top of the well" and "pitless adapters route pipe through a hole made a few feet down on the side of the well, below frost list (this is for freeze prone areas to keep your pipe from icing up)".

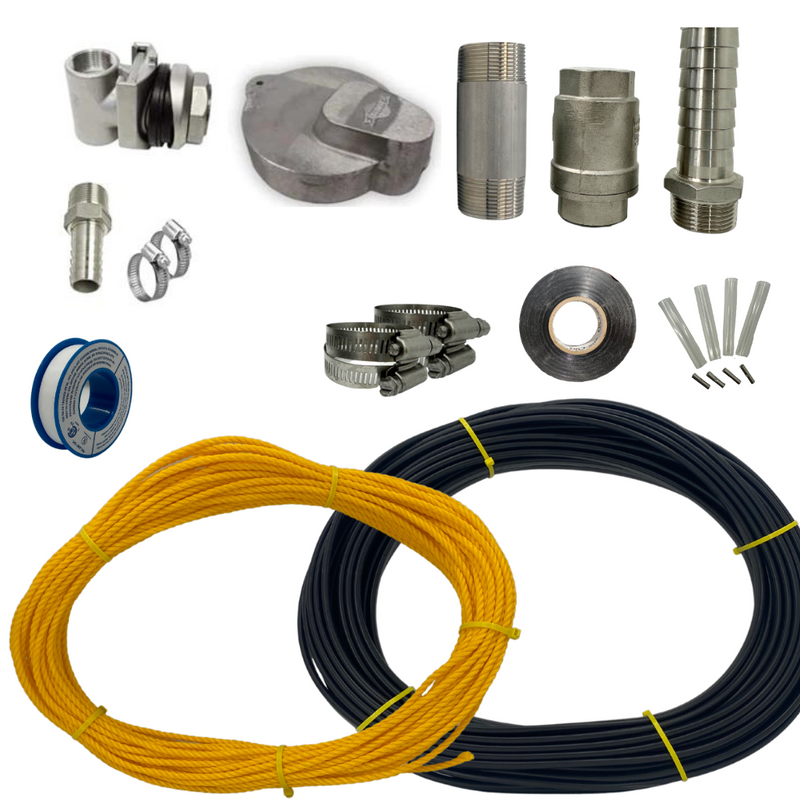

"Everything But the Pipe One-and-Done Pitless Adapter Assembly" kits include...
Wire

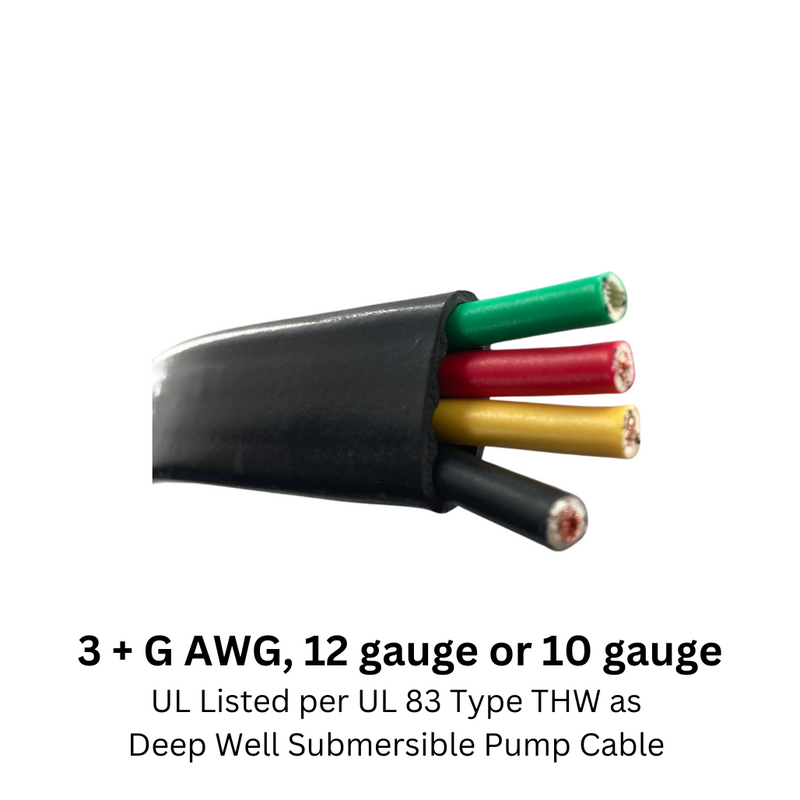

- Pump Wire - Outer jacketed (12-3+G AWG for 100 and 200 for kits, 10-3+G AWG for 300 foot kits). UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable. Operating temperature range -40° C to 75° C. Annealed bare stranded copper conductors.
- Waterproof Splice Kit for connecting pigtail off pump to rest of pump wire
Plumbing

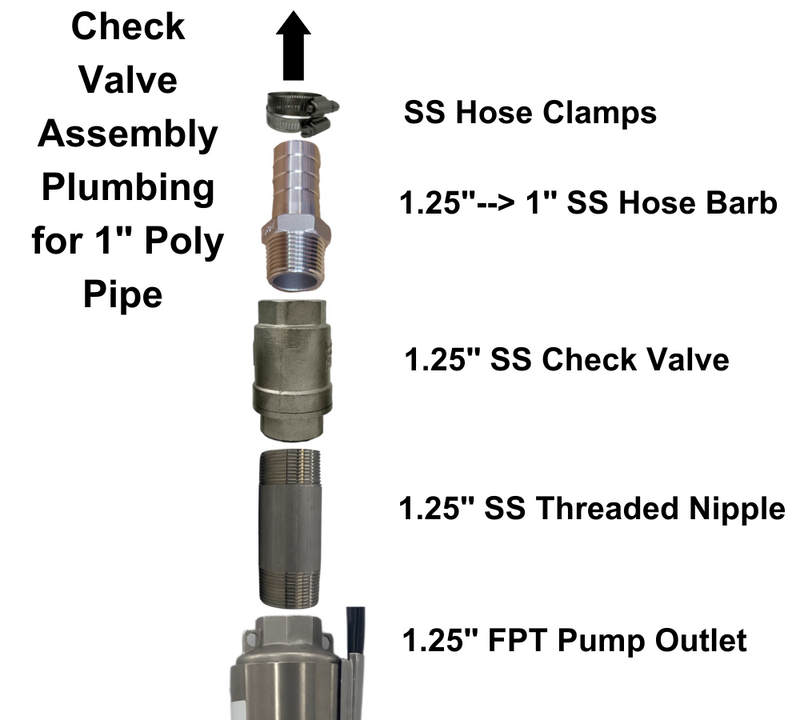

- Check Valve Assembly 1.25" stainless threaded coupler, 1.25" stainless check valve, 1.25"stainless hose barb(for 1.25" poly pipe kits) or 1.25"--> 1" reducing stainless hose barb (for 1" poly pipe kits), and stainless hose clamps.

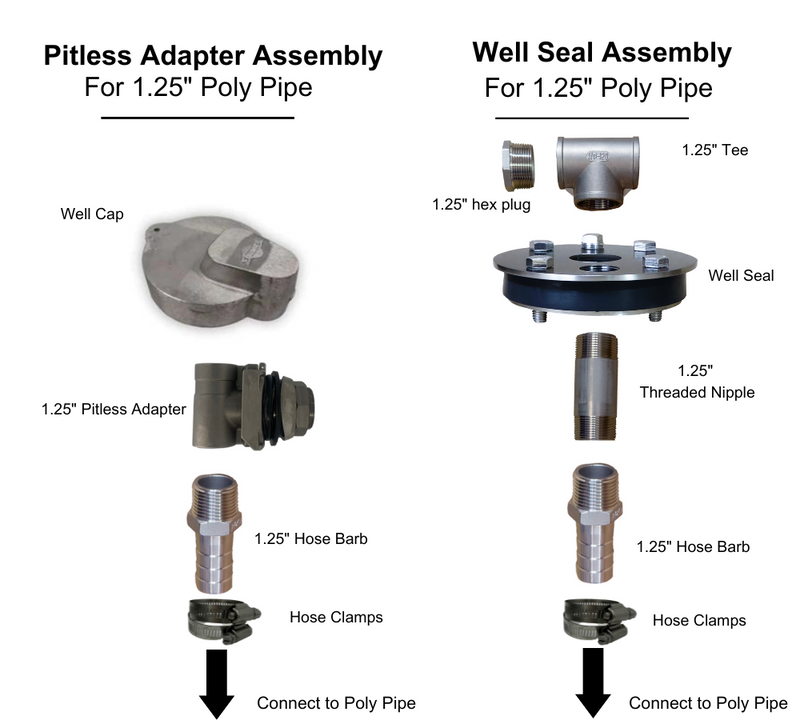

PItless Adapter Assembly...
- Well Cap (4", 5", 6" or 8")
- 1" stainless steel hose barb and 1" Pitless Adapter Assembly (for 1" poly pipe kits) or 1.25" stainless steel hose barb and 1.25" Pitless Adapter Assembly (for 1.25" poly pipe kits)
Additional Parts

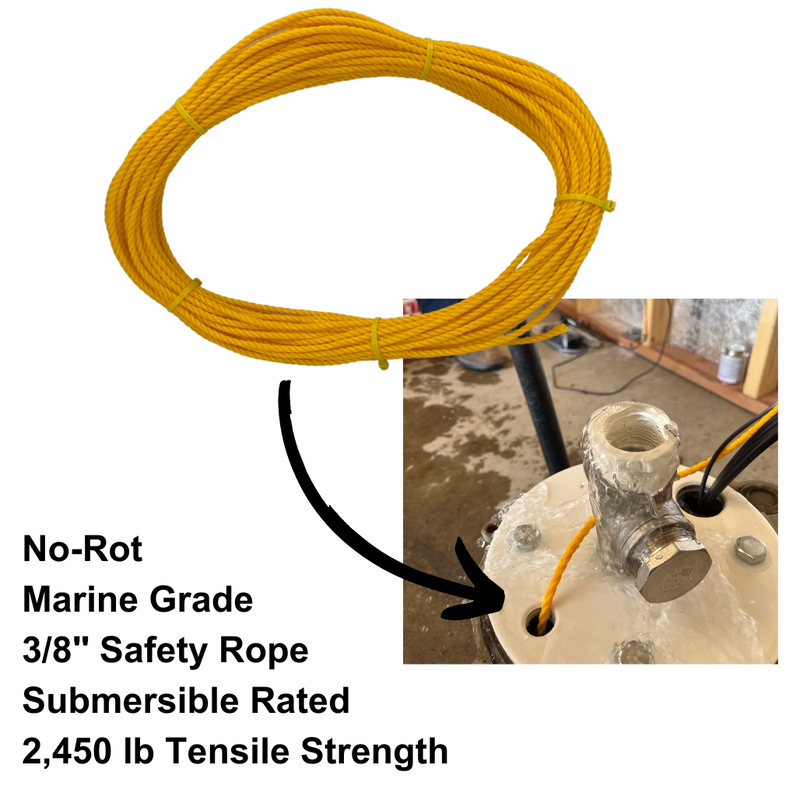

- Poly-braid no-rot safety rope, marine grade, submersible rated 3/8" diameter, 2,450lb tensile strength
- Teflon tape
- Electrical tape
Tools & Equipment you’ll still need on hand for the quick install:
- Wire stripper/crimper
- Flat and Phillips Screwdriver
- Lighter or heatgun for heatshrinks, heating poly pipe for tighter hose clamps
- Small socket set as it helps get hose clamps tighter
- Simple Multimeter for testing voltages
***If you are here from our sister company RPS Solar Pumps, this One and Done Kit is made to fit with AC well pumps, and is not interchangeable with the solar pump Turnkey Kit***
