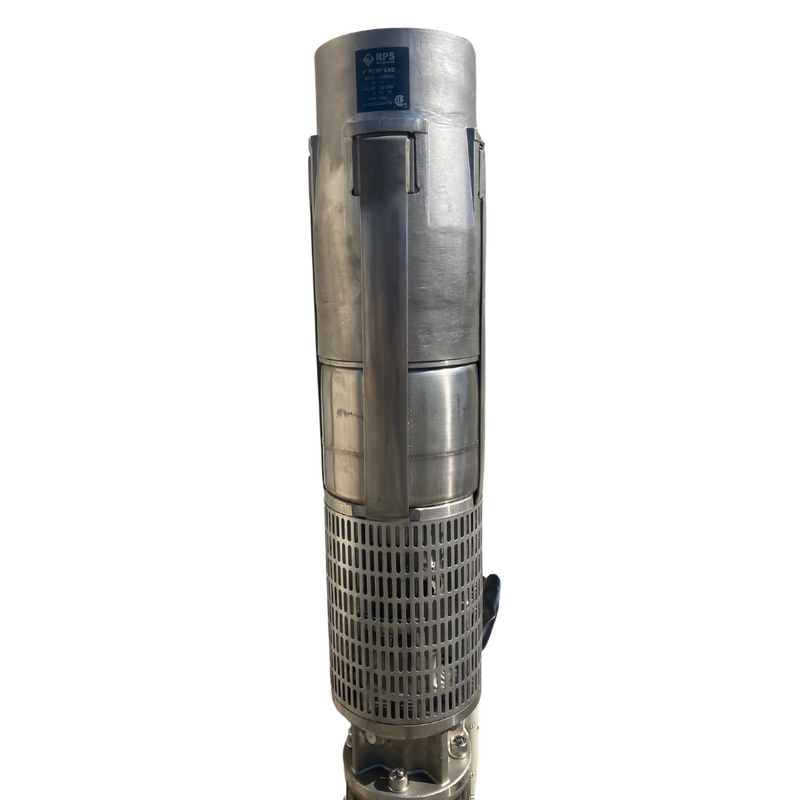

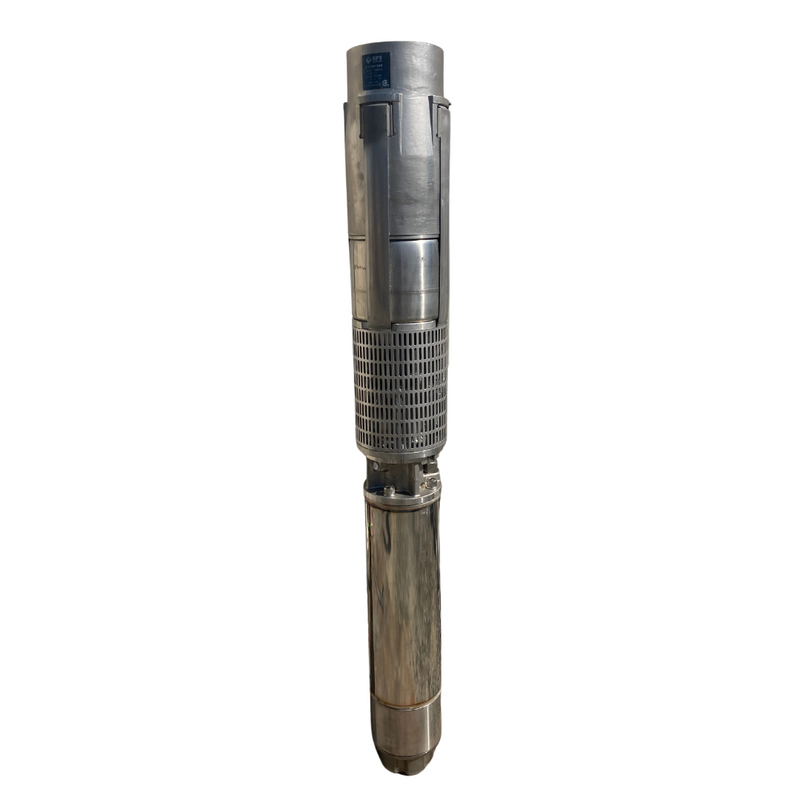

RPS 20HP 480V 500RPS200, Up to 200FT Head, 324 to 660GPM, Stainless Steel Submersible Pump End + Motor

Sold out
Original price $11,865.99
Original price $11,865.99 - Original price $11,865.99
Original price $11,865.99
Current price $5,932.99
$5,932.99 - $5,932.99
Current price $5,932.99

BONUS $50 Off When You Size with an RPS Pump Tech. Call 855-560-5670 M-F 8AM to 430PM PST

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

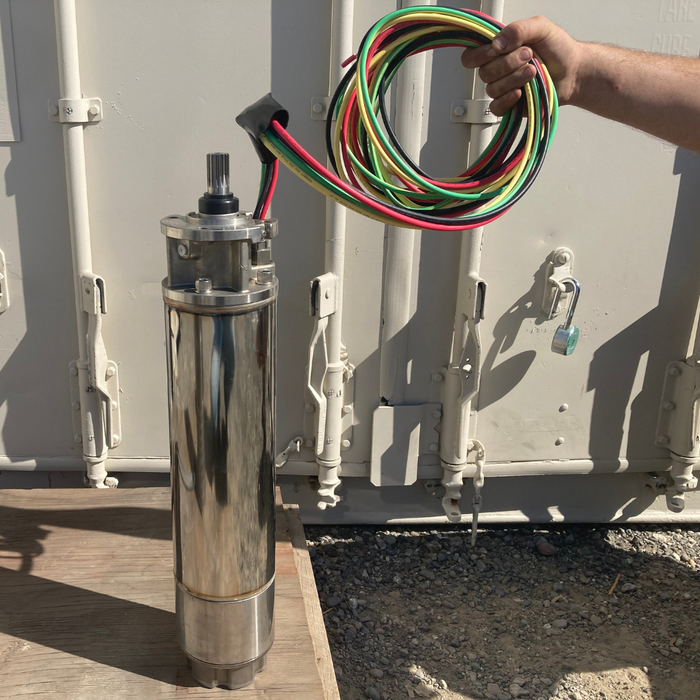

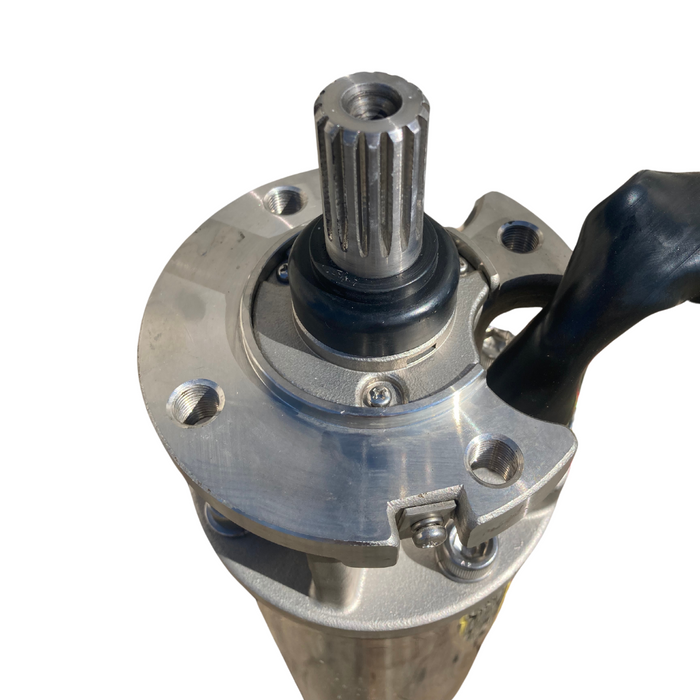

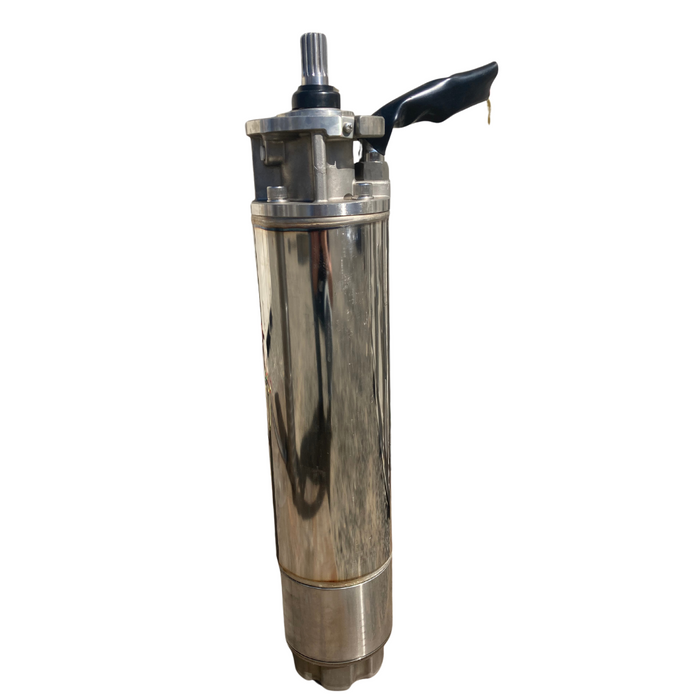

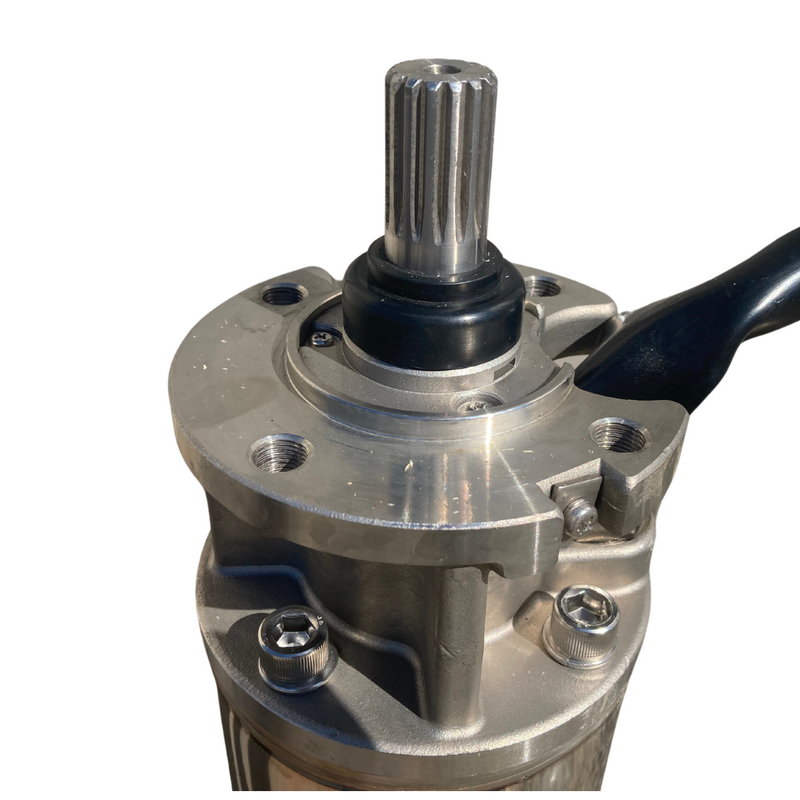

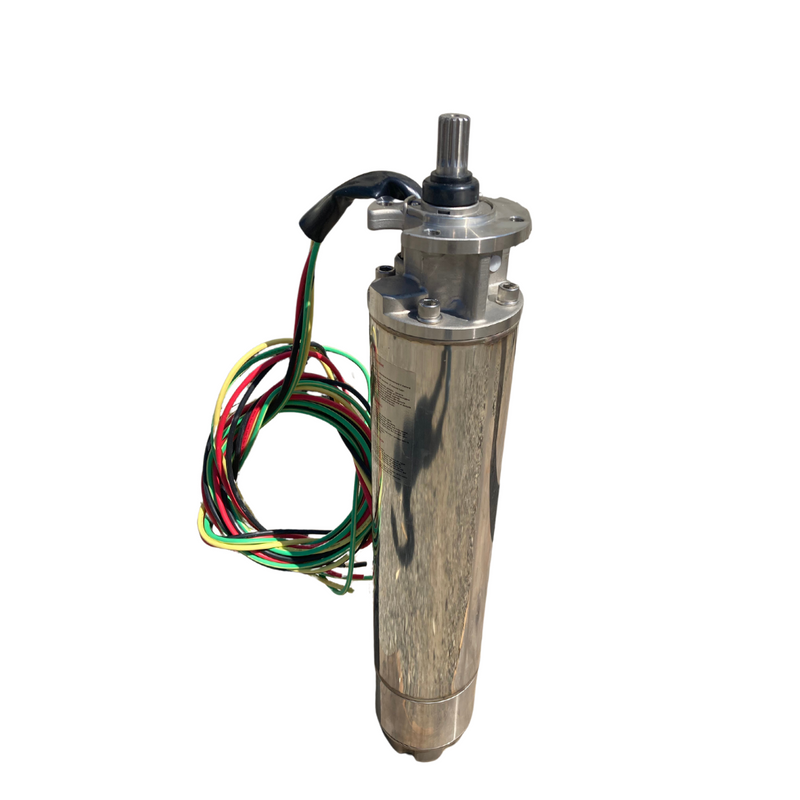

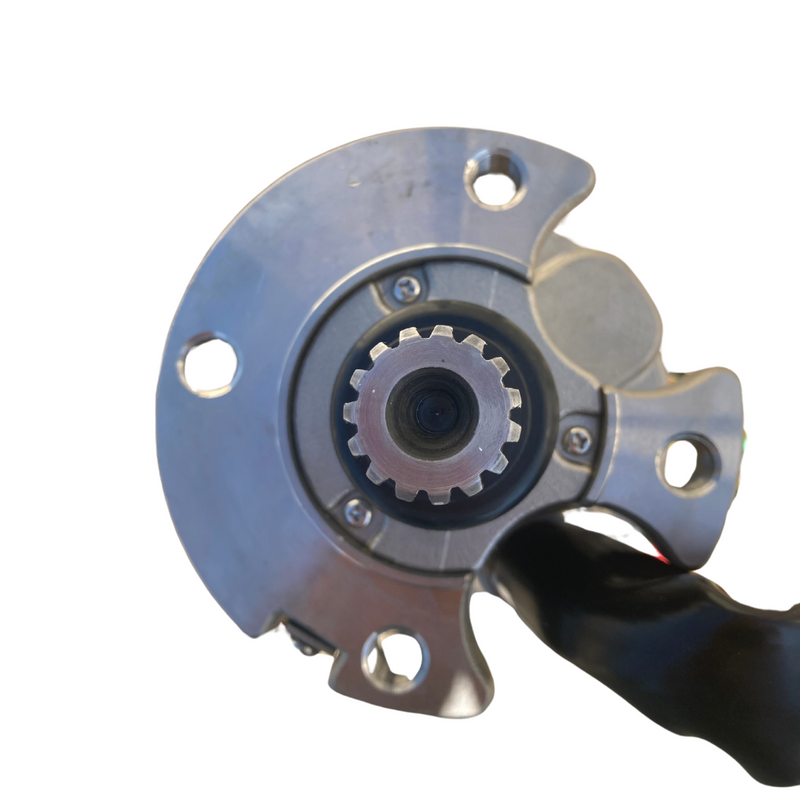

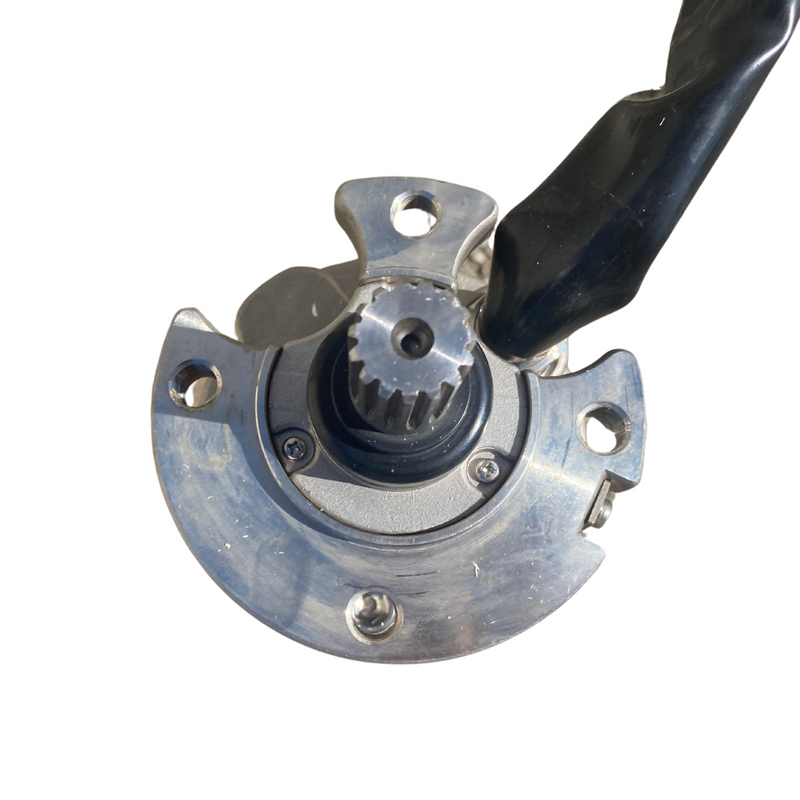

  • 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End

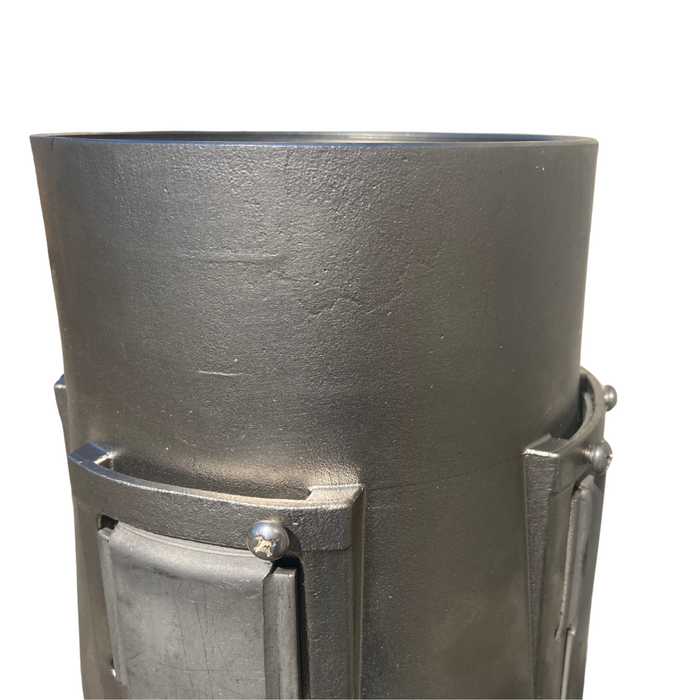

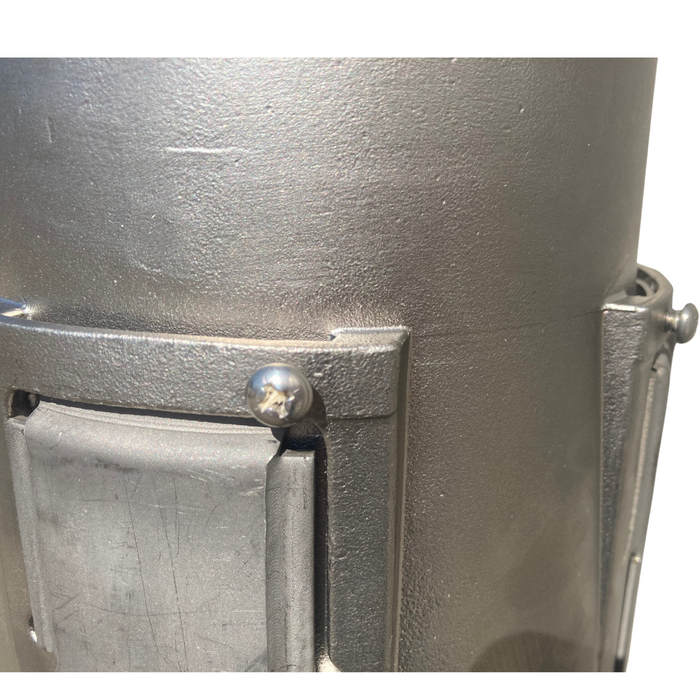

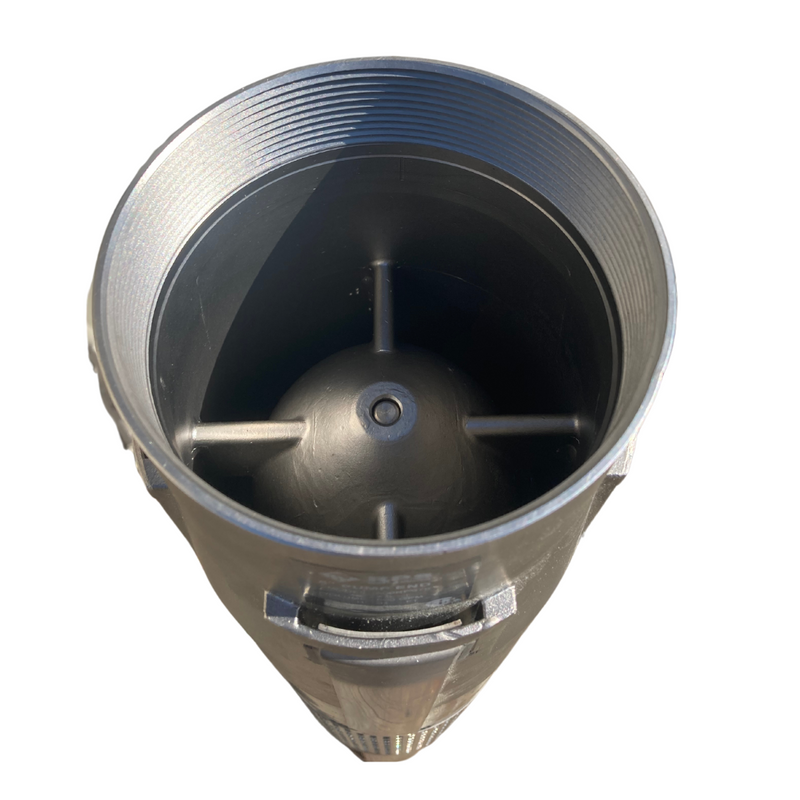

  • 5" outlet 500RPS200 324-660GPM Pump End, 8" Outside Diameter

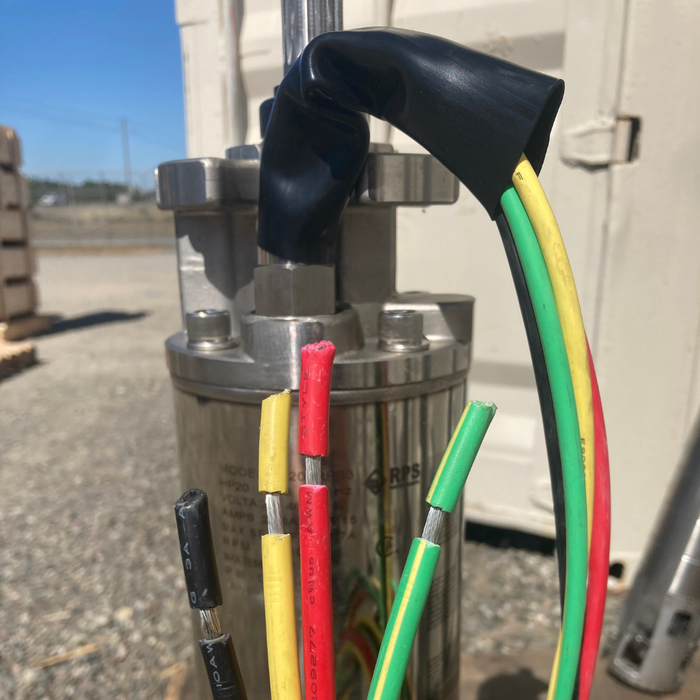

  • 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
  • Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head Gallons Per Minute (GPM)
No head 660
10 feet 660
20 feet  660
30 feet 660
40 feet  660
50 feet 630
60 feet 618
70 feet 601
80 feet 578
90 feet 555
100 feet 531
110 feet 509
120 feet 488
130 feet  465
140 feet 450
150 feet 412
160 feet 368
175 feet 324
Above 175 feet  Size Up for Optimal Performance



Specs
  • Length 55.9 inin
  • Weight 208.2 lblb
Shipping, Returns and Warranty

Ultra Fast Shipping

We know how crucial getting water to your property is - that's why we offer FREE SHIPPING with every order over $100, which should arrive to your doorstep within 3-5 business days anywhere in the contiguous USA.

Steel Flow™ High HP 7.5-25HP pumps ship FedEx Freight because of their weight. For customers in California, call our office as there may be faster shipping options we can offer up to 10HP.

2-Year System Warranty:

Rural Power Systems Inc. (RPS Water Pumps) warrants to the owner for a period of twenty-four (24) months from the date of purchase (“Warranty Period”) such RPS Products will be free from material defects in material and workmanship. During the Warranty Period, RPS Water Pumps will repair or replace any defective part(s) at no cost to the owner. Learn More.

What does our Water Assurance Guarantee mean?

We offer a money back guarantee that our pump systems will provide you water when sized by one of our engineers to your well, desired setup and final total dynamic pumping head. We do require static water levels, drawdown and pressure requirements are accurately estimated during the sizing process, that installation follows the instructions of the RPS User Manual, and that you give RPS engineers a chance to troubleshoot any issues.

Returns

Customer shall inspect the RPS Product within 30 days of receipt and will be deemed to have accepted the RPS Product unless you notify RPS Water Pumps of your intent to return the product. You may return the RPS Products purchased, for any reason, for a full refund up to thirty (30) days after the date of purchase. The RPS Products must be unused, in new condition, and you must pay the return shipping or return to product to RPS Water Pumps in person. For your convenience, we are happy to email printable shipping labels and deduct the cost (often a discounted rate vs. retail store rate) from your refund amount.

After 30 days and up to sixty (60) days after purchase, a full refund is not available, but transferrable store credit is available for returned products. Unfortunately, we do not accept returns past 60 days and are unable to offer refunds, however, your product warranty is transferable in event the system is sold during the Warranty Period.

As a condition of this return policy, you agree to give us the opportunity to troubleshoot the issue(s) with the RPS Product to work out any issues prior to return.

Free Shipping on Orders $100+

Need a Pump ASAP? Call Our Office for Fastest Shipping Estimates

Rather a Friendly Voice? Not Sure on Sizing?

Our famous support team is here to help! Call us at 855-560-5670

Take a Closer Look...

“RPS Stainless Steel 15HP Motor”

“90RPS200 Steel Flow Submersible Pump”

“Whats Inside an RPS Stainless Steel Pump End?”

“RPS Stainless Steel 15HP Motor”

“90RPS200 Steel Flow Submersible Pump”

“Whats Inside an RPS Stainless Steel Pump End?”

“RPS Stainless Steel 15HP Motor”

“90RPS200 Steel Flow Submersible Pump”

“Whats Inside an RPS Stainless Steel Pump End?”

RPS Laser Welded Construction

No Plastic Parts

Other pump companies use a mix of plastic and sub-par metal parts to construct their pumps, often those parts crack or break within a few months. RPS only uses anti-rust stainless steel.

Water Tight Motor Housing

Laser welding the top and bottom of the motor housing results in a superior watertight seal that protects your pump. No leaks!

Our Pledges to You

  1. Be a company our Grandfathers would have trusted. The trend of ‘outsourcing’ customer support after the sale is a trend we wholeheartedly oppose. We are an American, family run company and our USA engineers support you before and after the sale.
  2. No sales pressure. Ever. Nobody in the company is paid on commission. We think this is important. Their role is to make sure they find the right pump for you and your well. If we don’t have a livestock solar pump that will suit your needs, we will help you find a solution elsewhere. Our job is to help get you water.
  3. Reliable Water. All manufactured products have occasional issues and we can’t claim to be perfect. However, we are proud of a near perfect track record in getting our customers water. This starts with selling a pump sized for your usage with our Water Assurance Plan and promptly addressing warranty issues to get you up and pumping again quickly.
  4. Give you the power! When you control your ability to pump water out of the ground, whether that is in the field or at home, it makes you more resilient and independent. We are here to help educate you about solar water pumping for livestock and our systems over the phone, with our manual - so you can install yourself. Take control of your water supply today.
  5. Fight for the American rancher. RPS is a David & Goliath story of a small American company fighting against a big European pump corporation that cares more about profits then the longevity of their pumps and the sky-high price for ranchers. Thanks to all our customers for the support of small business vs. foreign corporations trying to profit off some of the hardest working people in our great nation.

-The RPS Team
